DNA ID Tools

Script tools used to fetch DMA’s DNA ID
Reminder
  • Please completely uninstall the anti-cheat software running at startup before dumping the device list. (Vanguard, Faceit, ACE, 5E, Wanmei, etc.)
  • All operations are performed on the Second PC.

​

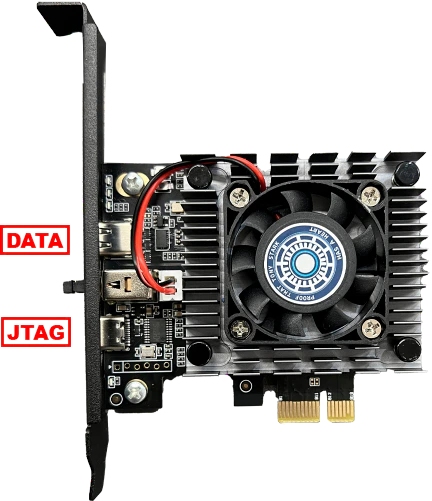

1. Switch the port on DMA to JTAG

The port closest to the gold finger is the JTAG port, while the one farthest from it is the DATA port.

​
2. Download & Install driver for JTAG

Firmware Tools Pack

Download & Extract the files into a folder
Your DMA are either I. RS232 DMA Driver (LeetDMA, CaptainDMA, Others) or II. CH347 DMA Driver (ScartletDMA, CaptainDMA, PeeperDMA, Hackdma and Others).Try both if you don’t know which one you are.

​
I. RS232 DMA Driver (LeetDMA, CaptainDMA, Others)

  1. Download the tools above and extract. Open Drivers folder -> Run zadiag.exe
  2. Click Options -> List All Devices
  1. On USB Device, Choose Quad RS232-HS (Interface 0).
You must select “Interface 0”, otherwise it is likely to cause DMA damage.
Can’t find the device? Double check your dma is plugged to JTAG port or try CH347 DMA Burning
  1. Press Replace Driver or Install Driver and wait until the driver installed, installation take up to 5 minutes.
After successfully, close the zadiag and goto next step.

​
II. CH347 Driver (ScartletDMA, CaptainDMA, PeeperDMA, Hackdma and Others)

  1. Download the tools above and extract. Open Drivers folder -> Open CH341PAR -> Open CH341PAR -> Run & Install SETUP.exe
Can’t find the device? Double check your dma is plugged to JTAG port or try RS232 DMA Burning

​
3. Get DMA’s DNA ID

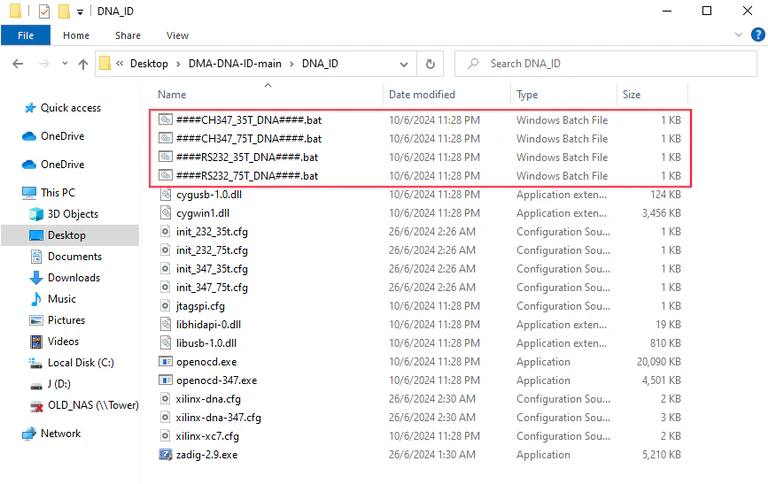

  1. Based on your DMA board type (35T / 75T), run the corresponding .bat file
If you’re unsure whether to choose CH347 or RS232, just run both; one of them will display the ID.

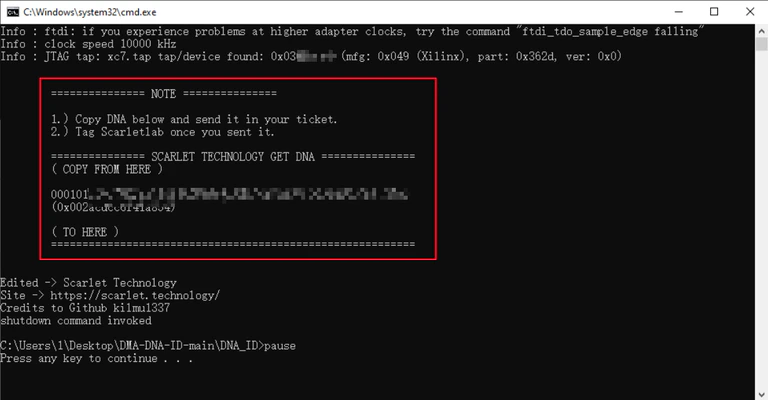

  1. This is how the correct results looks like ⬇️
  1. Copy the ID and send in your ticket. After that tag Scarletlab for firmware produce.
